Greater Cincinnati Water Works
River Station
Cincinnati, OH

Host & tour guide: Lee Hite
6/15/2013

Website: http://cincinnatitriplesteam.org/

(click to enlarge photo)

Engine Specifications:

Five, Vertical, Triple expansion steam engines
1000 HP each, 104 feet tall
Cylinders (HP/IP/LP): 29/54/82"
Boiler Pressure: 150 psig
Stroke: 96"
In operation 1906-1963
(More details)

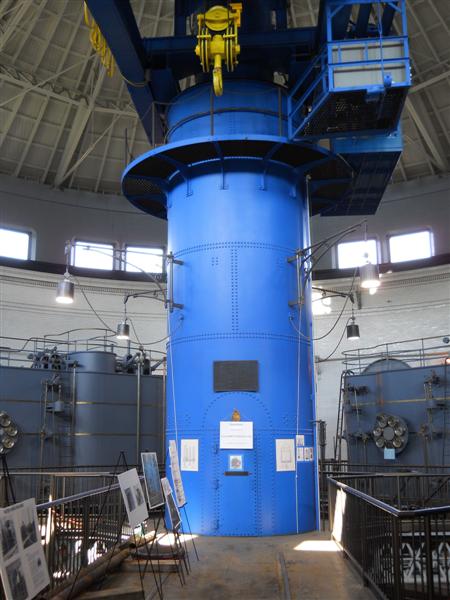

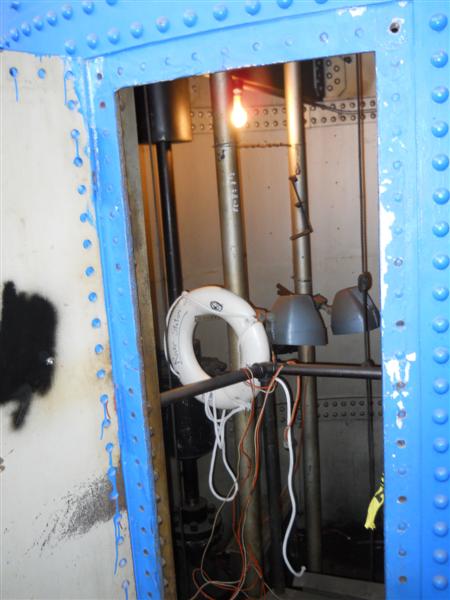

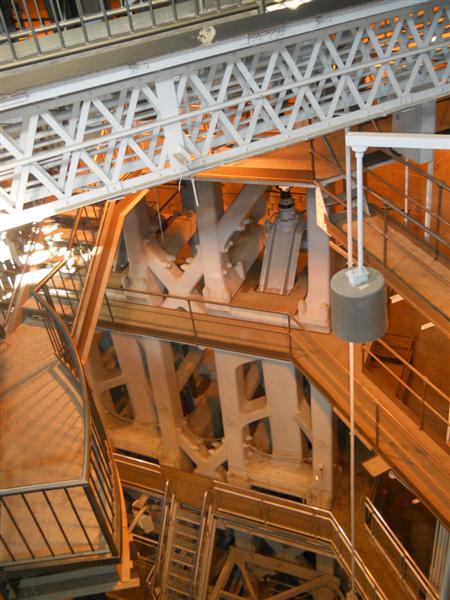

Stand Pipe - to Ohio River

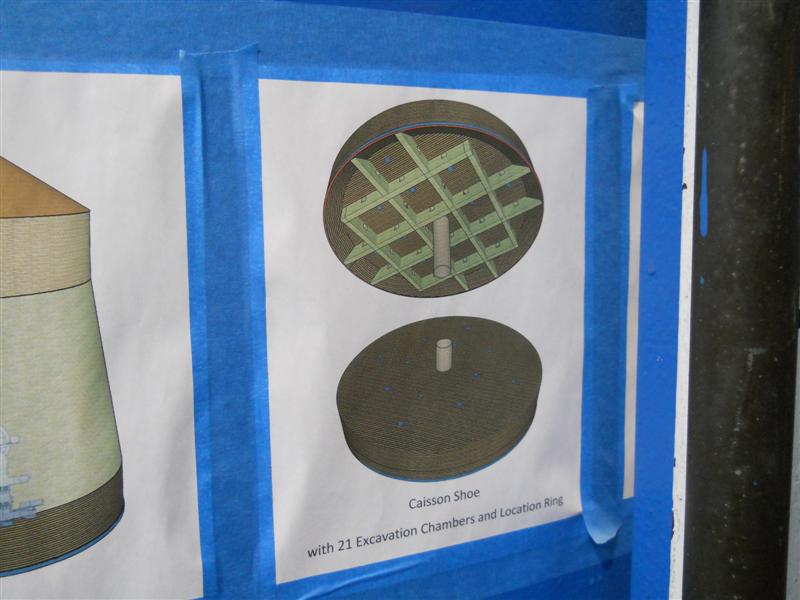

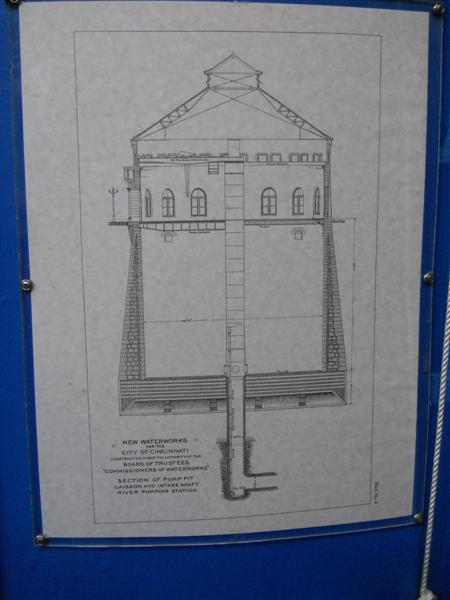

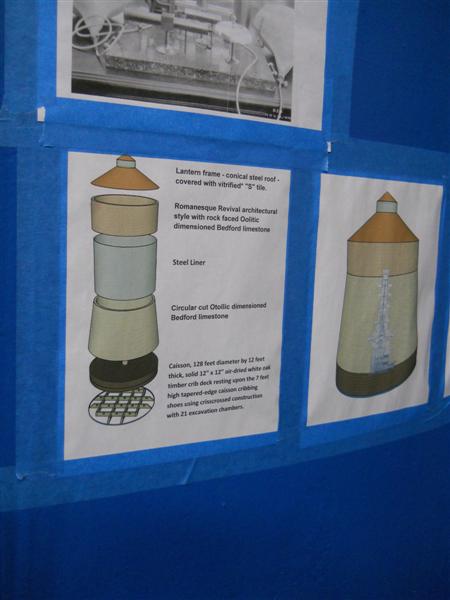

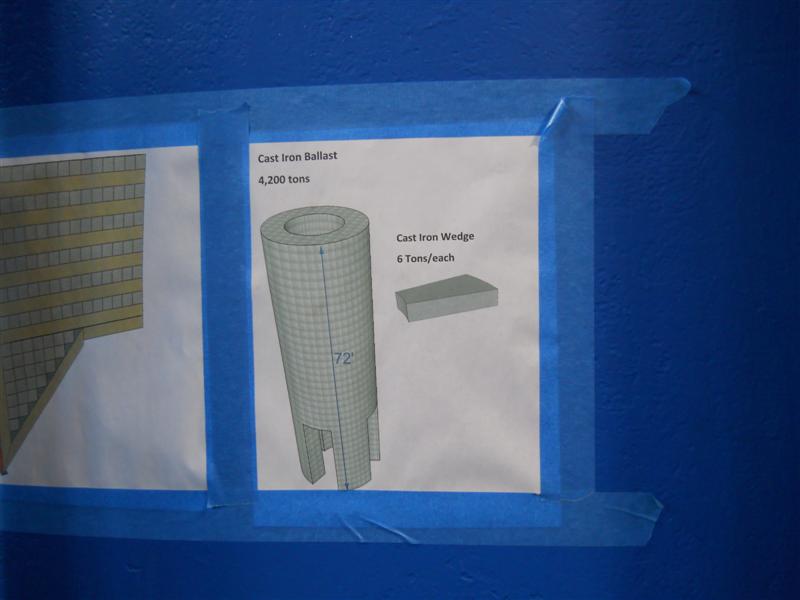

Construction Details
(even more details)

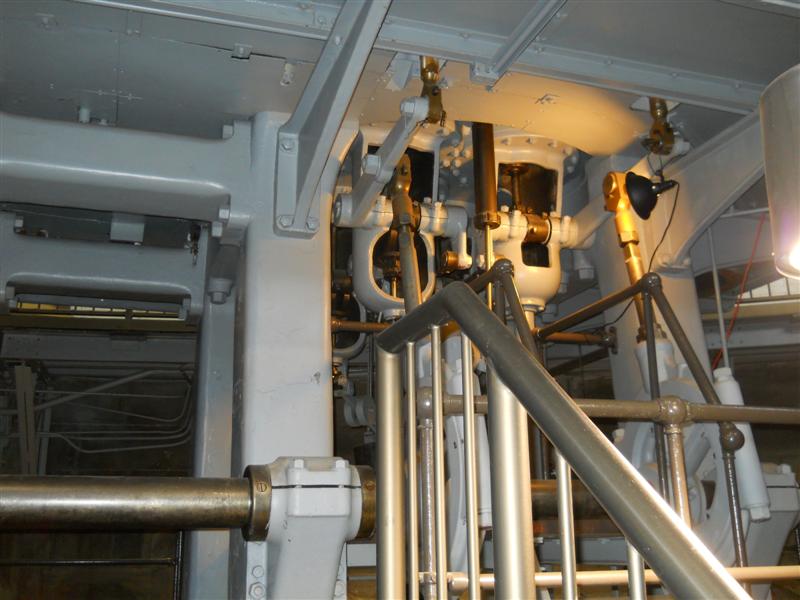

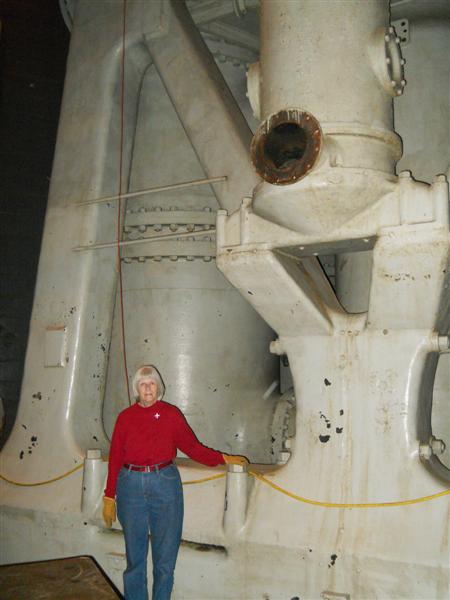

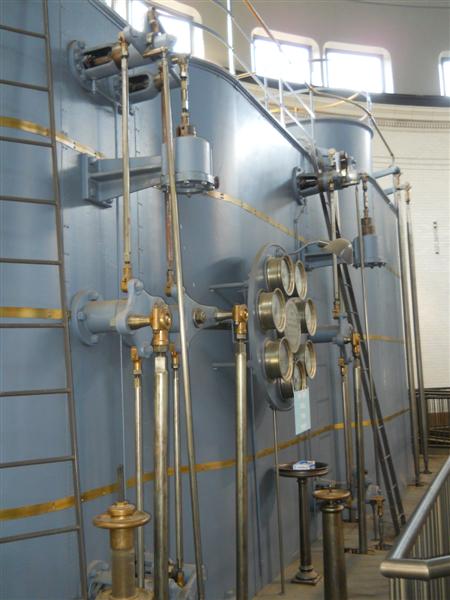

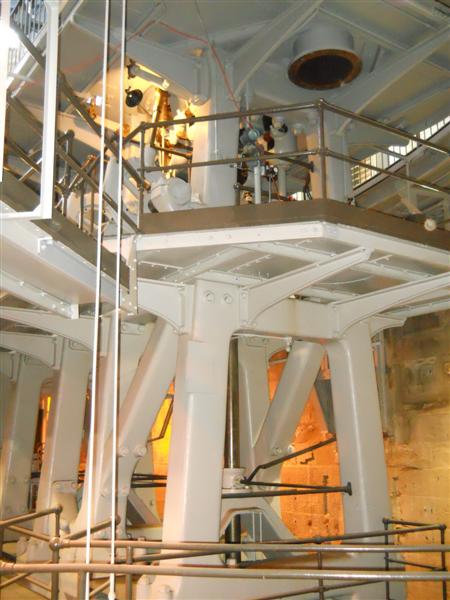

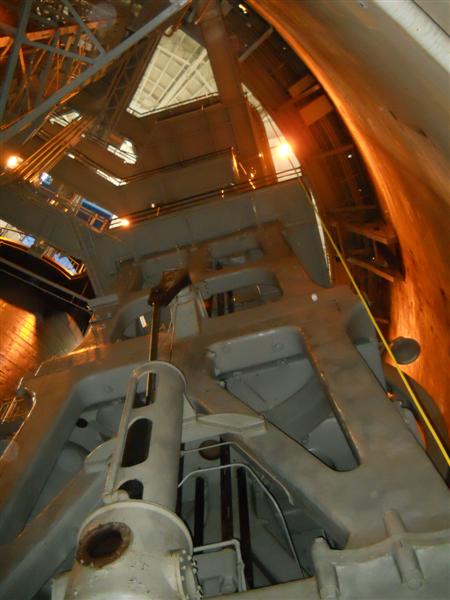

Center part of an engine

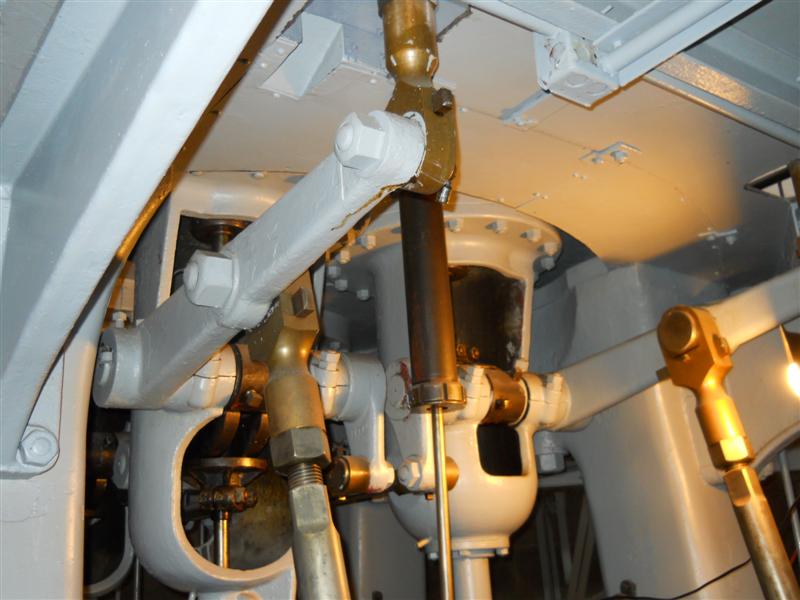

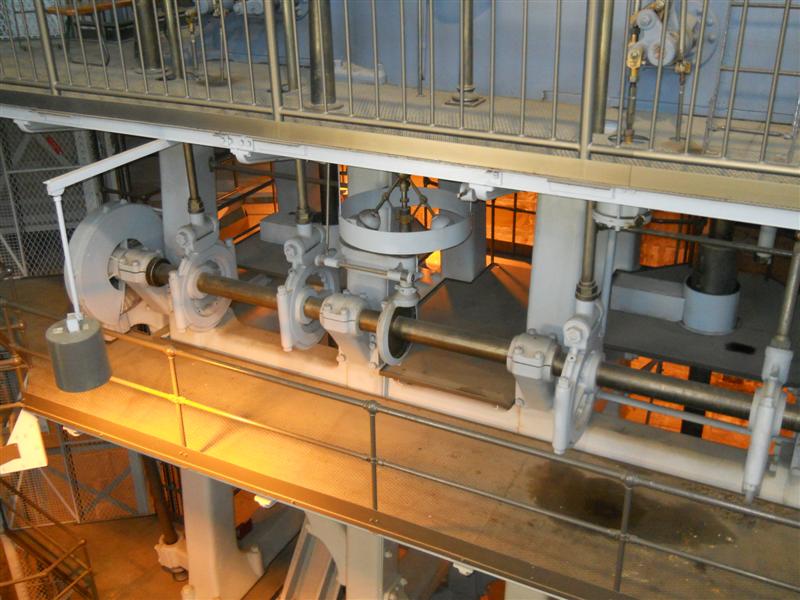

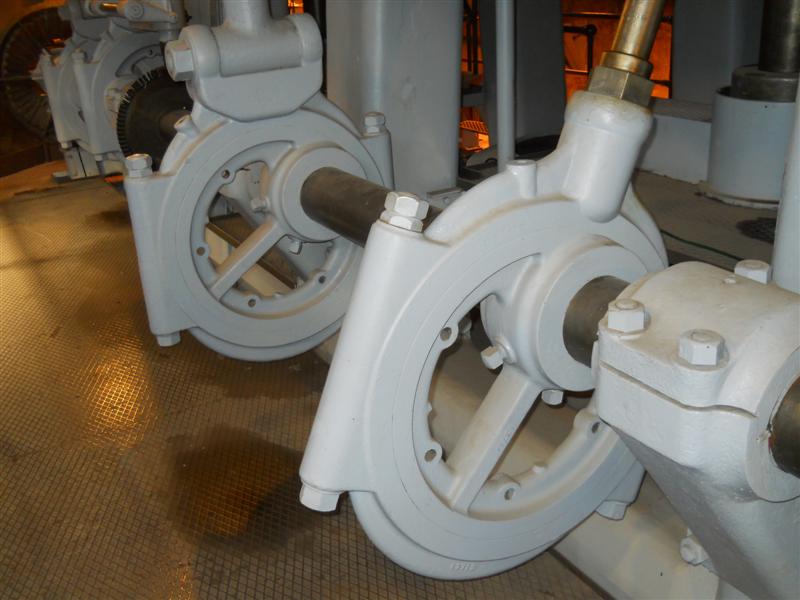

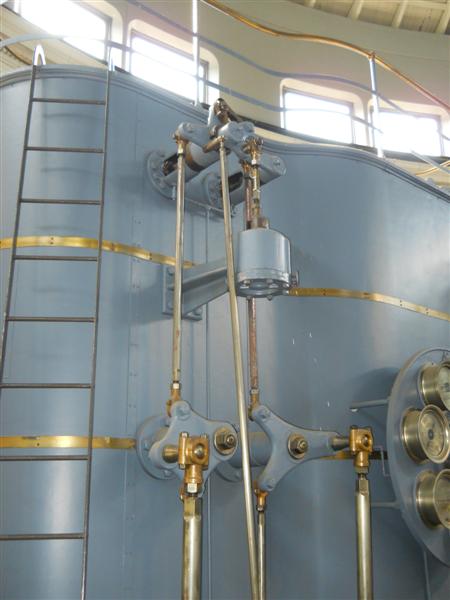

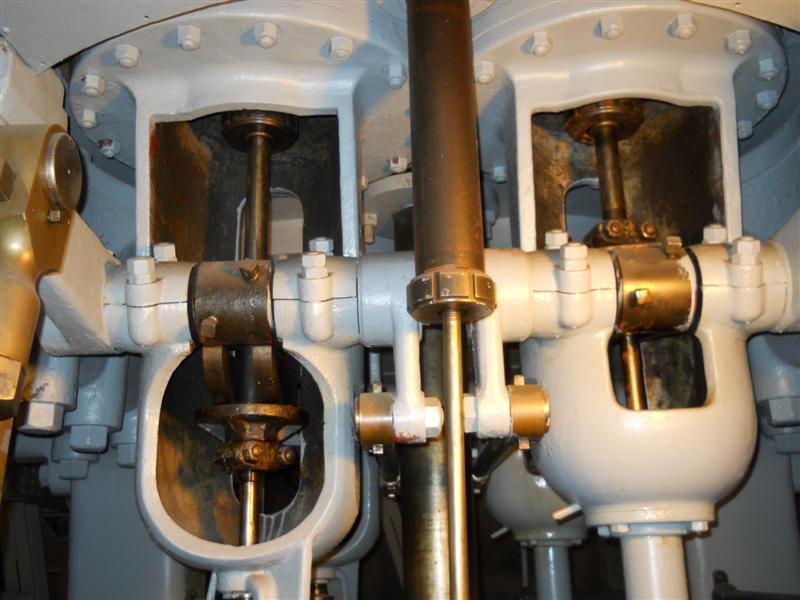

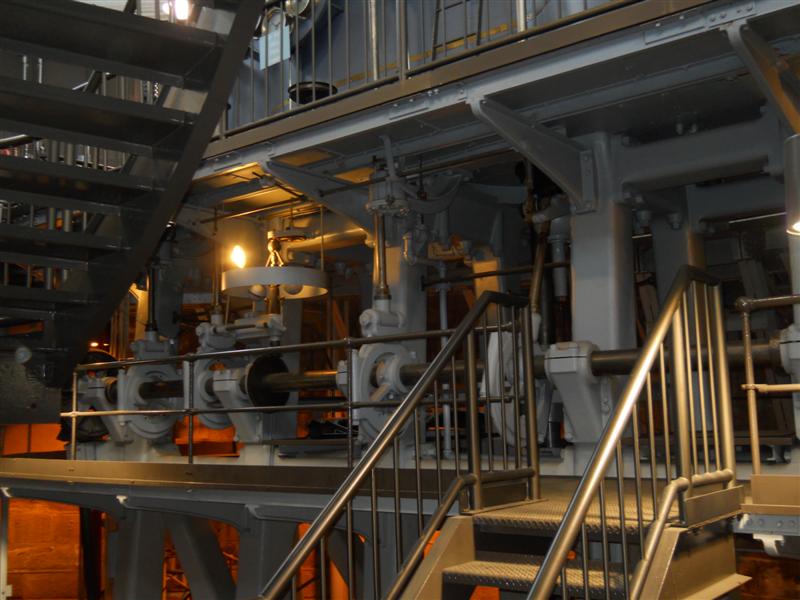

Eccentrics & valve activation machinery

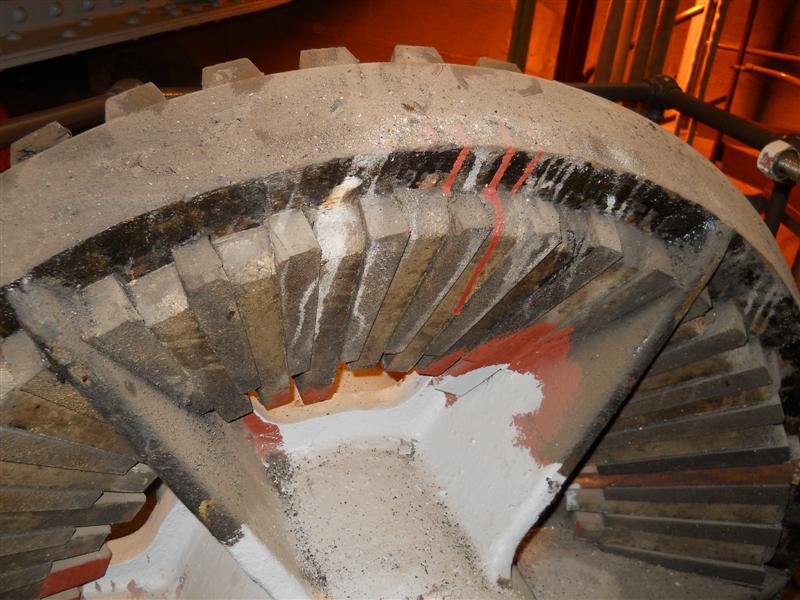

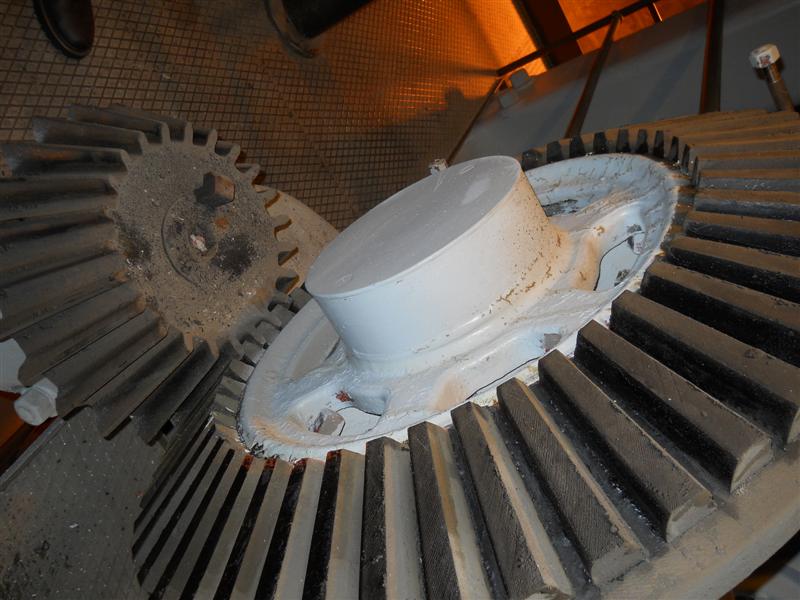

(Notice the bevel gear which drives the eccentric shaft has wooden teeth!)

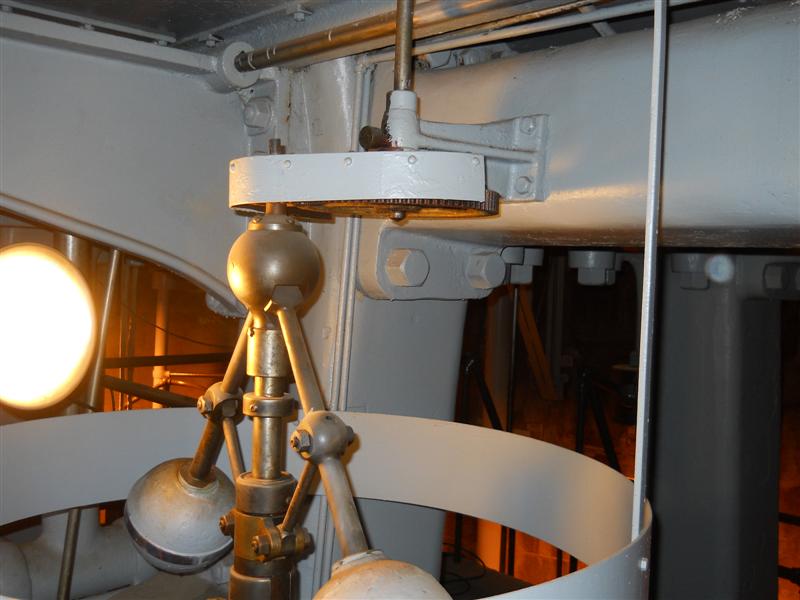

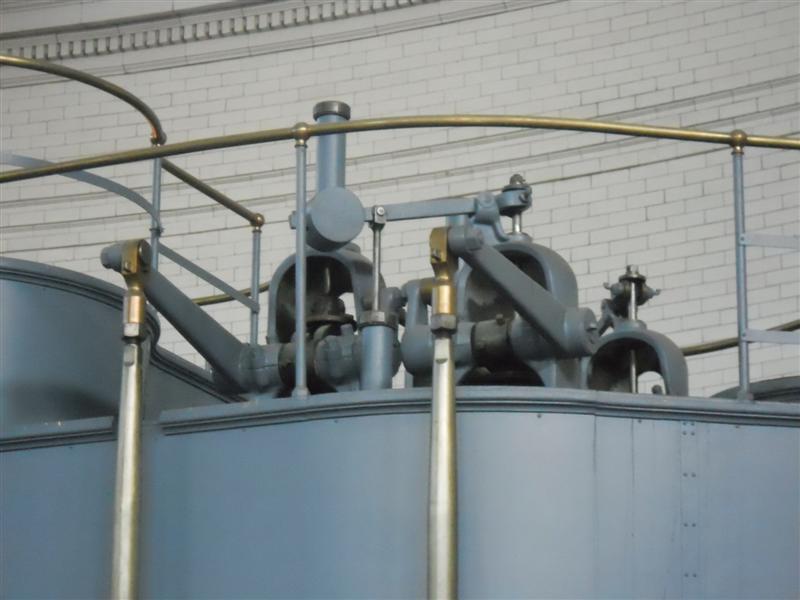

Fly-Ball Governor

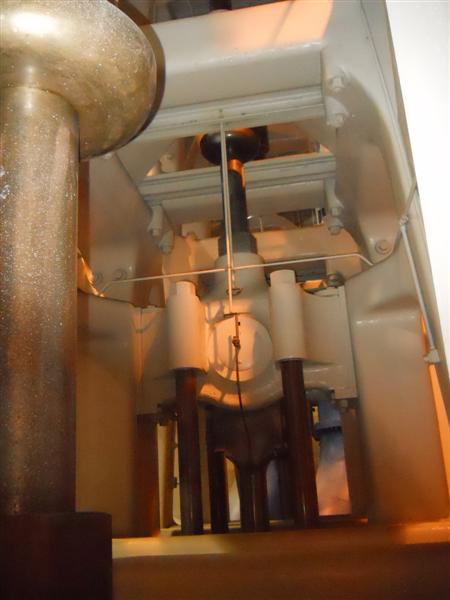

Crosshead

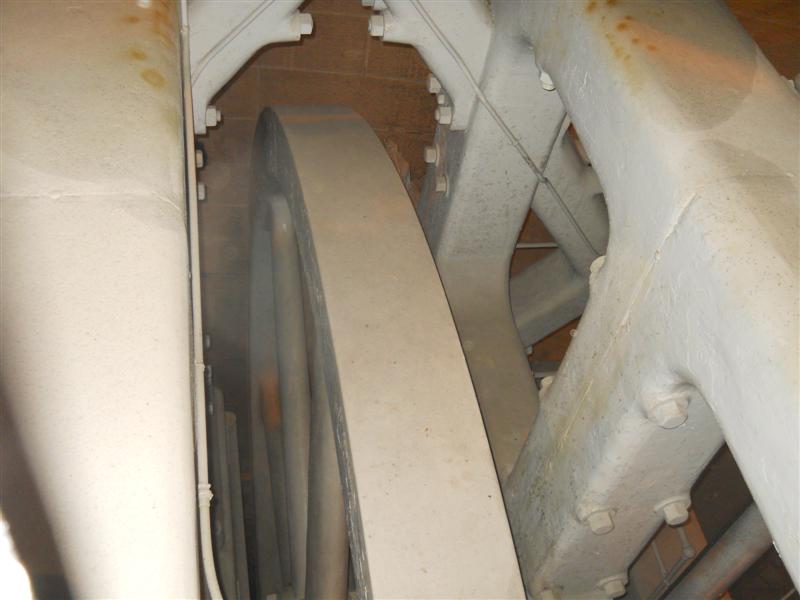

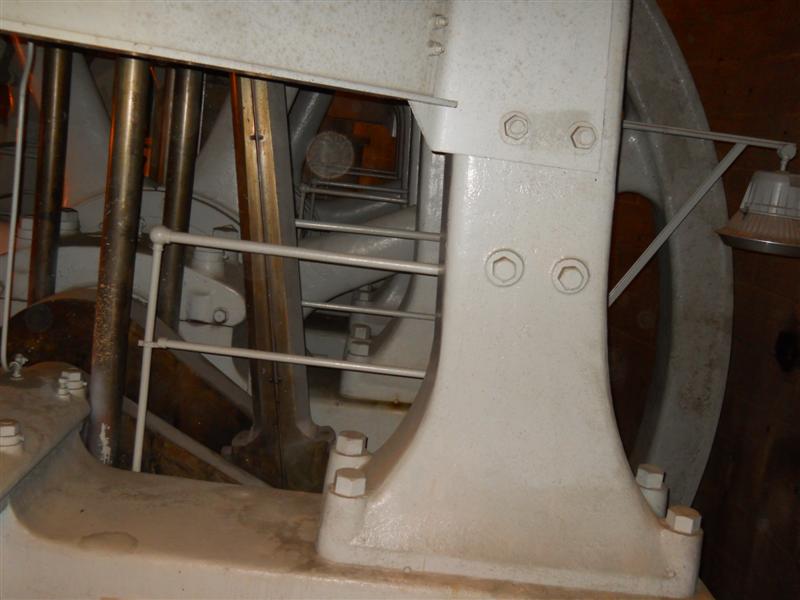

Flywheel

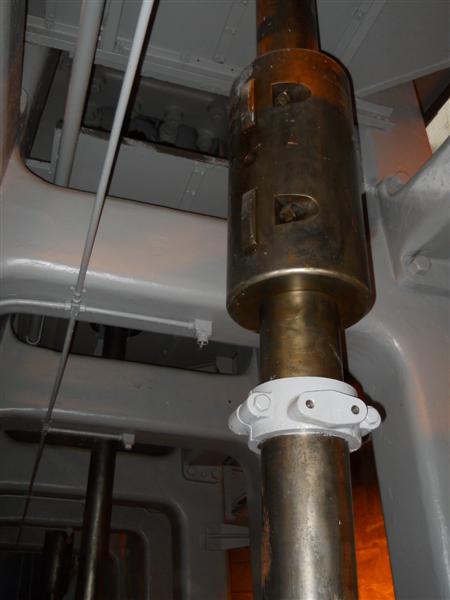

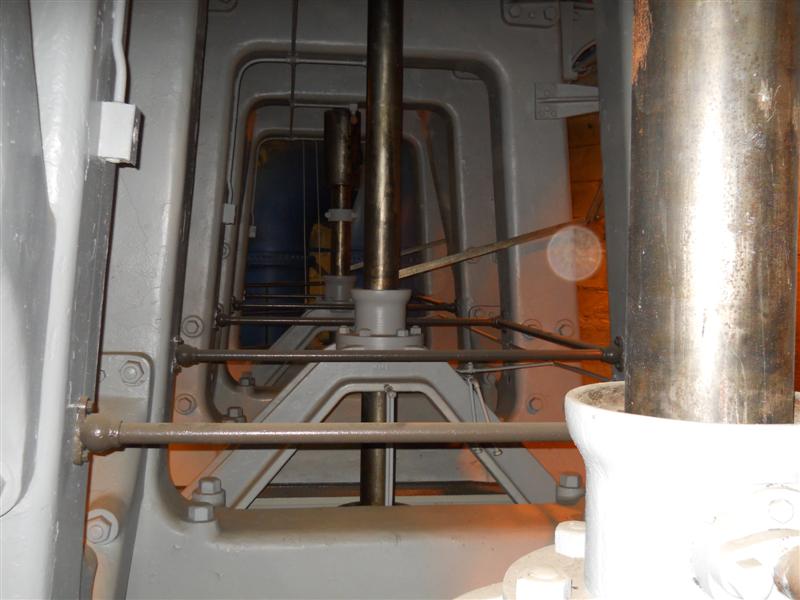

Piston rod

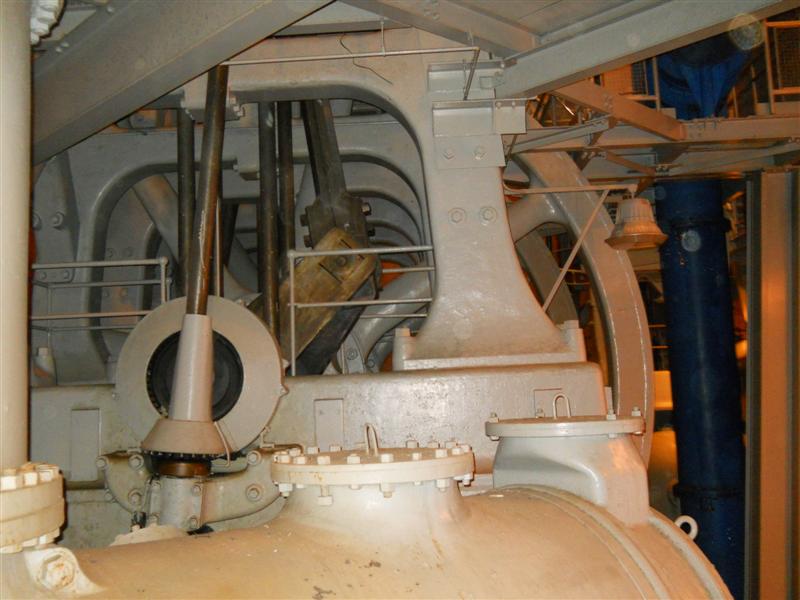

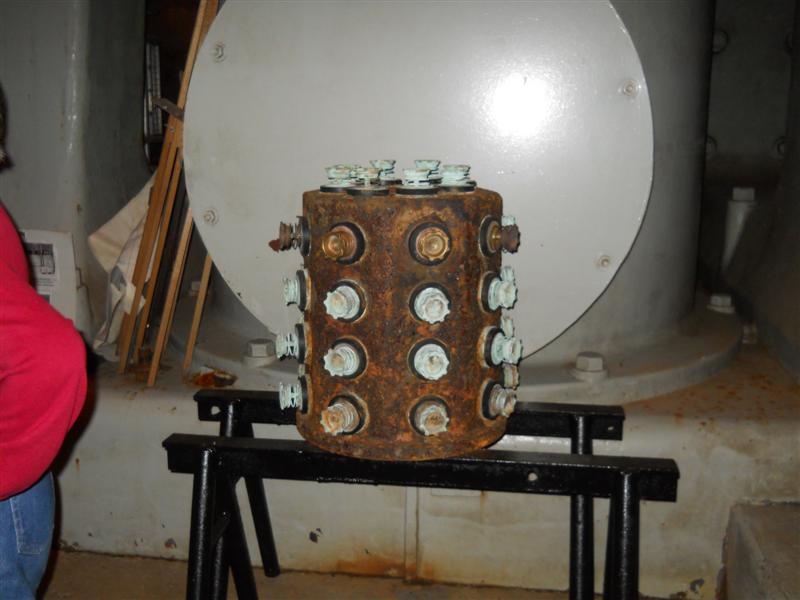

Pump & check valve assembly

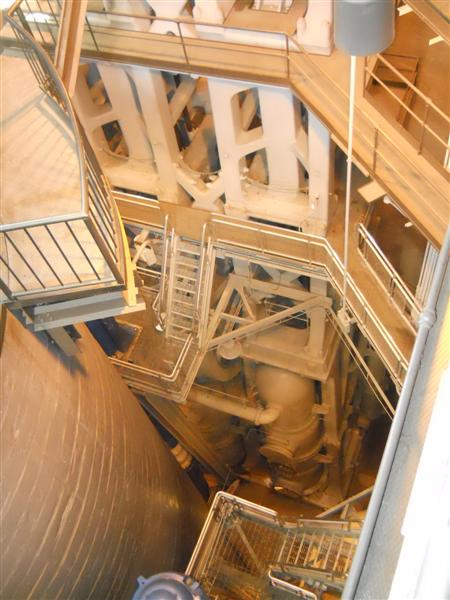

Short video of pump floor, looking up
